EZPRO-09-HP-WMAH-115DE-O
DIY - SELF INSTALL
Description

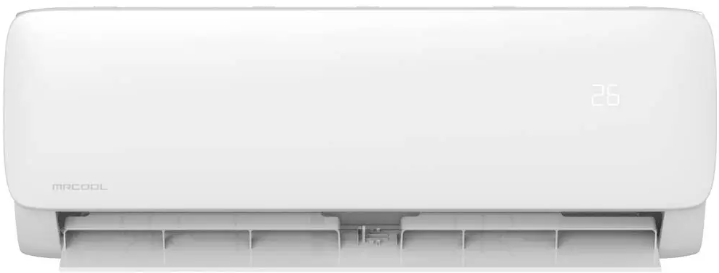

The MRCOOL® Easy Pro® 9K BTU 115V Ductless Mini Split Heat Pump Air Handler delivers efficient, dependable heating and cooling for spaces up to 400 square feet. Ideal for bedrooms, home offices, garages, studios, and bonus rooms, it provides reliable year round comfort while helping reduce energy use and monthly utility costs.
Designed for true do it yourself installation, the system is compatible with the MRCOOL® Quick Connect® line set factory pre charged with R454B refrigerant, eliminating vacuum pumps and refrigerant handling. The included 13 foot DIYPRO® cable replaces traditional electrical conduit, simplifying installation while protecting wiring from moisture, pests, and everyday wear.
Comfort control is simple and flexible with the included wireless remote or the MRCOOL® Comfort app, allowing you to adjust temperatures, set schedules, and monitor energy usage from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands free convenience. Advanced features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically balance comfort and efficiency.
A Gold Fin® condenser coating provides enhanced corrosion resistance, making the system well suited for humid or coastal environments. For added peace of mind, the MRCOOL® Easy Pro® 9K system comes with a 5 year compressor warranty and a 3 year parts warranty. This industry leading coverage reflects MRCOOL’s confidence and pride in the quality, durability, and performance of every unit.
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- TONNAGE 0.75
- VOLTAGE (V) 115
- PHASE 1
- CYCLE 60
- MAX FUSE BREAKER (A) 15
- MIN CIRCUIT AMPACITY (A) 3
- COLOR White
- MAX COVERAGE AREA 400 sq. ft.
- ZONE CAPACITY 1
- REFRIGERANT TYPE R-454B
- DECIBEL RATING LOW (DBA) 18
- DECIBEL RATING HIGH (DBA) 43
- OSCILLATION Yes
- BLOWER MOTOR TYPE DC
- BLOWER MOTOR RPM 1050/810/690
- FILTER TYPE Reusable
- ADJUSTABLE THERMOSTAT Yes
- FAN ONLY OPTION Yes
- SLEEP MODE Yes
- AUTO COOL Yes
- WIFI COMPATIBILITY Yes
- APP COMPATIBILITY Yes
- WORKS WITH IOS Yes
- WORKS WITH ANDROID Yes
- REMOTE CONTROL INCLUDED Yes
- BASE WARRANTY 3 Year Parts
- BASE PARTS WARRANTY 3 Year Parts
- BASE REMOTE WARRANTY 3 Year
- HAS BATTERIES Yes
- CONTAINS ELECTRONICS Yes
- CONTAINS CHEMICALS Yes
- CONTAINS COMPRESSED GAS Yes
- PROPOSITION 65 WARNING Yes
- NET DEPTH (IN) 7.87
- NET HEIGHT (IN) 11.5
- NET WIDTH (IN) 28.7
- NET WEIGHT (LBS) 23.81
- GROSS DEPTH (IN) 16.14
- GROSS HEIGHT (IN) 13.58
- GROSS WIDTH (IN) 32.68
- GROSS WEIGHT (LBS) 33.95
─────────────────────────────────────────────────────────────
Compatibility
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
MRCOOL Condenser Wall Mounting Kit - 9k to 18k BTU
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

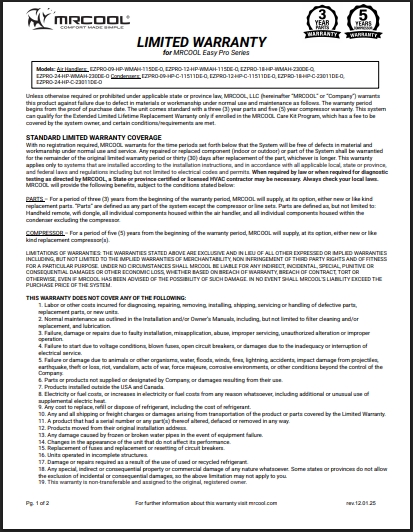

Warranty
The MRCOOL warranty offers comprehensive coverage for your unit.
─────────────────────────────────────────────────────────────
Quick Links
- Image 1
- Image 2
- Image 3 (as Bundle)
- Image 4 (as Bundle - Back)
- Install Manual
- Remote Manual
- Service Manual
- Warranty
- Manuel d'installation en français
- Manuel de la télécommande en français
- Document de garantie en français
- Manual de la telecommande en español
- AHRI
- Energy Guide
─────────────────────────────────────────────────────────────
