DIY EasyPro 9k Condenser w/11.5' Install Kit- 115v

Sandra

June 09, 2026 17:23

EZPRO-09-HP-C-11511DE-O

DIY - SELF INSTALL

Description

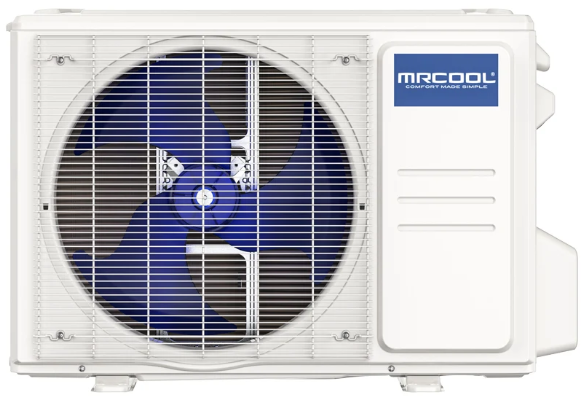

The MRCOOL® Easy Pro® 9K BTU 115V Ductless Heat Pump Single Zone Mini Split Condenser is designed to make high efficiency home comfort simple and accessible. Built for true do it yourself installation, it requires no specialized HVAC tools or professional experience, making it ideal for garages, home offices, studios, workshops, and other spaces up to 400 square feet. Despite its DIY friendly design, the Easy Pro® 9K delivers impressive performance with a 20.2 SEER2 cooling rating and 9.2 HSPF2 4 heating efficiency.

This allows the system to maintain consistent indoor comfort throughout the year while using less energy, helping reduce utility costs and provide long term savings. Installation is streamlined with an 11.5 foot Quick Connect® line set that arrives factory pre charged with R 454B refrigerant, eliminating the need for vacuum pumps or refrigerant handling. This makes setup faster, cleaner, and more approachable for first time installers.

Everyday control is simple and flexible using the included wireless remote or the MRCOOL® Comfort app, which allows temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands free convenience. Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically optimize comfort and efficiency, while a Gold Fin® condenser coating provides added corrosion resistance for humid or coastal environments.

For peace of mind, the Easy Pro® 9K includes a 5 year compressor warranty and a 3 year parts warranty, reflecting MRCOOL®’s confidence in the quality and reliability of every system.

Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs

SEER2: 20.2
EER2: 11.3
HSPF2-4: 9.2
HSPF2-5: 7.1
TONNAGE: 0.75
COOLING CAPACITY (BTU): 9000
HEATING CAPACITY (BTU): 10000
VOLTAGE (V): 115
PHASE: 1
CYCLE: 60
MAX FUSE BREAKER (A): 20
MIN CIRCUIT AMPACITY (A): 17
COLOR: White
ZONE CAPACITY: 1
REFRIGERANT TYPE: R-454B
REFRIGERANT VOLUME (OZ): 17.28
DECIBEL RATING (DBA): 54
INVERTER: Yes
LINESET INCLUDED: Yes
LINE SET LENGTH: 11.5 ft.
MAX LINESET LENGTH (FT): 75 ft.
LIQUID LINE SIZE: 1/4
SUCTION LINE SIZE: 3/8
COMPRESSOR MOTOR TYPE: Rotary
CONDENSER FAN MOTOR TYPE: DC
CONDENSER FAN MOTOR RPM: 850/700/600
METERING DEVICE: EEV
UL LISTED: Yes
CSA LISTED: Yes
ETL LISTED: Yes
ENERGY STAR CERTIFIED: Yes
AHRI CERTIFIED: Yes
BASE WARRANTY: 3 Year Parts, 5 Year Compressor
BASE PARTS WARRANTY: 3 Year Parts
BASE COMPRESSOR WARRANTY: 5 Year Compressor
CONTAINS ELECTRONICS: Yes
CONTAINS CHEMICALS: Yes
CONTAINS COMPRESSED GAS: Yes
PROPOSITION 65 WARNING: Yes
NET DEPTH (IN): 10.63
NET HEIGHT (IN): 19.49
NET WIDTH (IN): 28.35
NET WEIGHT (LBS): 54.67
GROSS DEPTH (IN): 10.63
GROSS HEIGHT (IN): 21.26
GROSS WIDTH (IN): 32.87
GROSS WEIGHT (LBS): 66.58

─────────────────────────────────────────────────────────────

Compatibility

DIY EasyPro 9k Air Handler w/13' Com Cable- 115v

MRCOOL Mini-Stats

MMCK01 Cool Care Program Kit

MMCFOA Cool Care Program Kit - Foaming Cleanser Only

MRCOOL Condenser Wall Mounting Kit - 9k to 18k BTU

Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

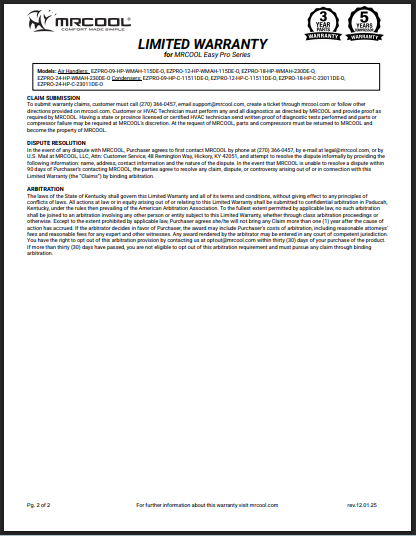

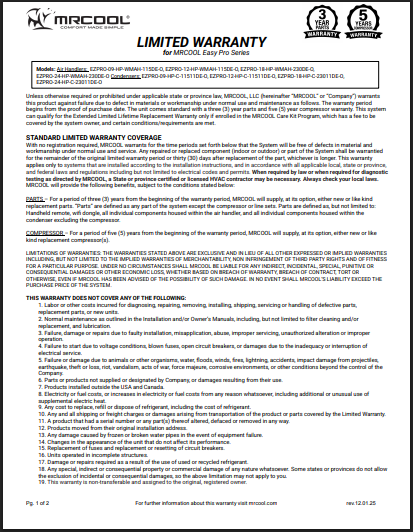

Warranty
