EZPRO-09-HP-C-11516D-O
DIY - SELF INSTALL
Description

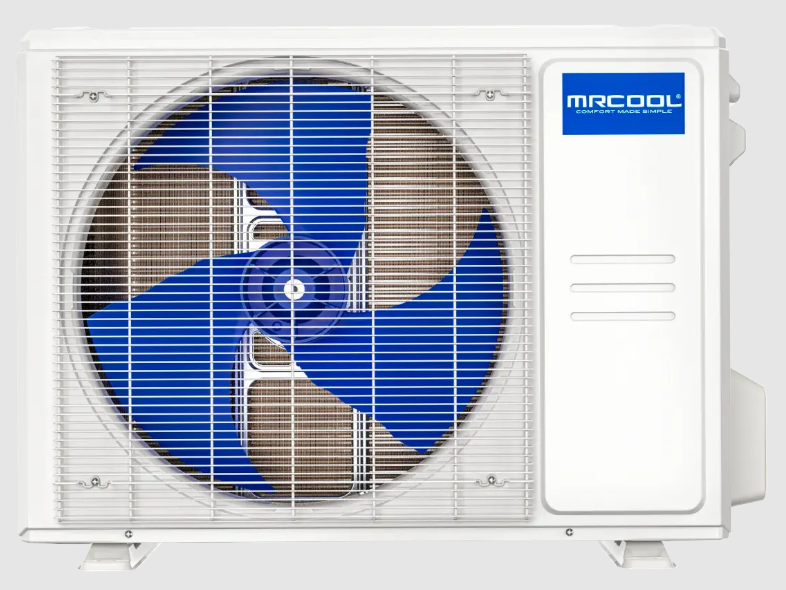

The MRCOOL® EASY Pro™ Series 9k BTU Mini-Split Heat Pump Condenser is a budget friendly, convenient and impressive heating and cooling solution for spaces around 400 square feet. Due to the innovative nature of the unit’s do-it-yourself installation, you can have this system operating and bringing you comfort in no time.

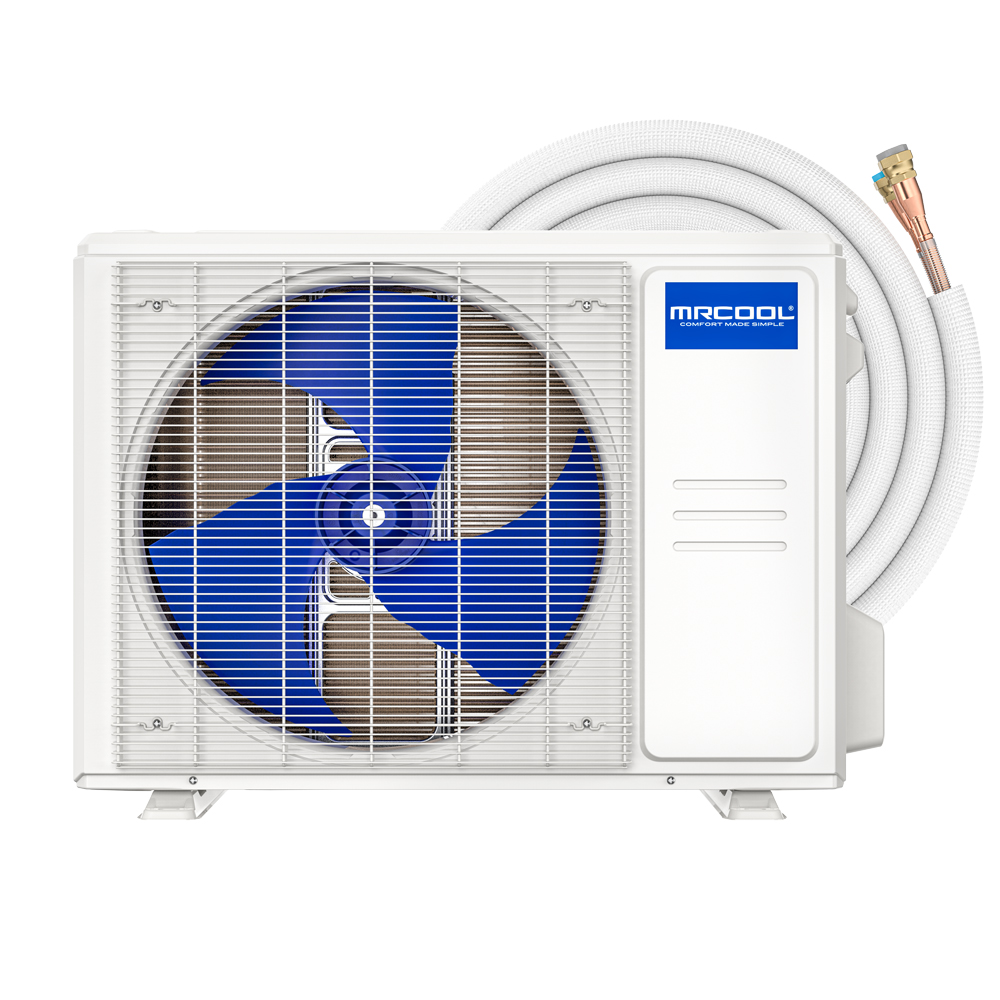

This capable and durable 20.2 SEER2 and 9.2 HSPF2 4 condenser comes with a 16 ft pre charged Fast Connection® line set, enabling you to install this system in a matter of hours without the assistance of an HVAC professional. You can save time and money with this Easy Pro™ condenser’s accommodating and ingenious design.
The Easy Pro™ condenser comes with a variety of features that will help you make the comfort you experience from this system the best heating and air you’ve ever felt. You can connect your system to Wi Fi, which lets you operate your system from your phone.
The system also features an Auto Restart function, allowing you to get right back to enjoying the comfort you want after a power outage. This whisper quiet unit will deliver comfort to your space without making a racket, as it only reaches 54 dB(A), and due to its Low Ambient Cooling feature, it can provide cooling even when it’s 5°F outside, making it perfect for use in a greenhouse or server room.
MRCOOL® has got your back with a 2 year compressor warranty and a 1 year parts warranty, once you register this condenser online. For a system to enhance your comfort without breaking the bank, choose the MRCOOL® Easy Pro™ condenser. Experience comfort made easy, anytime and anywhere!
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- SEER2: 20.2
- EER2: 11.3
- HSPF2-4: 9.2
- HSPF2-5: 7.1
- Tonnage: 0.75
- Cooling Capacity: 9000 BTU
- Heating Capacity: 10000 BTU
- Voltage: 115V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 20A
- Min Circuit Ampacity: 17A
- Color: White
- Zone Capacity: 1
- Refrigerant Type: R-454B
- Refrigerant Volume: 17.28 oz
- Decibel Rating (High): 54 dBA
- Inverter: DC
- Min Ambient Cool: 5°F
- Line Set Included: Yes (16 ft)
- Max Line Set Length: 82 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 3/8 in
- Compressor Motor Type: Rotary
- Works with iOS: Yes
- Works with Android: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 10.63 in D × 19.49 in H × 28.35 in W
- Net Weight: 54.67 lbs
- Gross Dimensions: 10.63 in D × 21.26 in H × 32.87 in W
- Gross Weight: 66.58 lbs
─────────────────────────────────────────────────────────────
Compatibility
DIY 9k Easy Pro 5th Gen Air Handler - 115v
5th Gen R-454B DIY Line Set 1/4" - 3/8"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
MRCOOL Condenser Wall Mounting Kit - 9k to 18k BTU
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

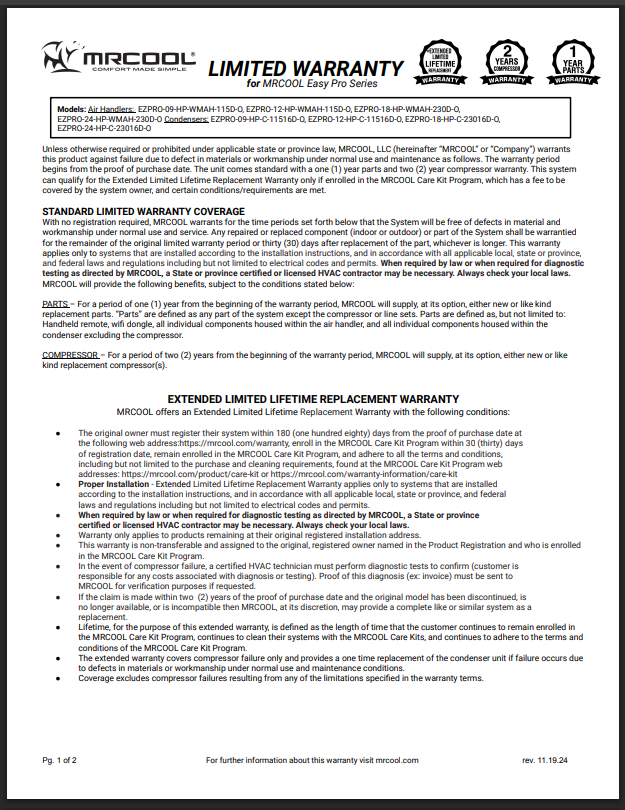

Warranty
The MRCOOL warranty offers comprehensive coverage for your unit.
─────────────────────────────────────────────────────────────
Quick Links
- Warranty Registration
- Warranty Information
- Image 1
- Image 2
- Service Manual
- Rebate Center
- Install Manual
- Remote Manual
- Manual de servicio en español
- Manuel de la télécommande en français
- Document de garantie en français
- Accessory Manual
- Manuel des accessoires en français
─────────────────────────────────────────────────────────────
