EZPRO-12-HP-C-11516D-O
DIY - SELF INSTALL
Description

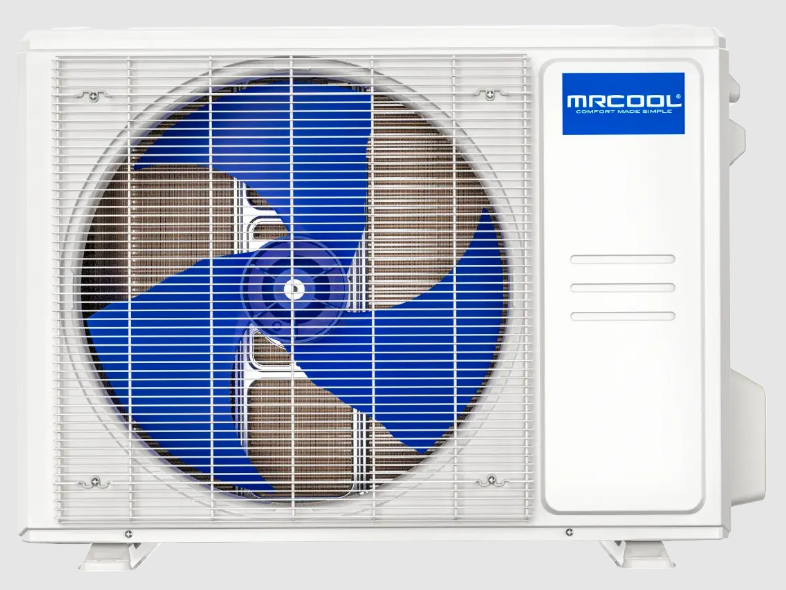

If you want easy comfort that won’t break the bank, you need the MRCOOL® Easy Pro™ Series 12k BTU Mini-Split Heat Pump Condenser! This efficient system, designed to heat and cool spaces that are up to 550 square feet, is so easy to install, you don’t even need an HVAC professional!
This durable and capable condenser, which has a SEER2 19.5 and an HSPF2-4 9.3, can be installed by a homeowner due to the 16’ pre-charged Fast Connection® line set. This innovative line set essentially allows you to easily link the fittings to the condenser without needing professional assistance, saving you time and money thanks to the innovation of the Easy Pro™ condenser.
If you want ultimate control over your comfort, look no further. You’ll be able to connect your system to Wi-Fi, opening a whole world of convenience, controls, and features with the touch of a button on your smart phone. You can also enjoy immediate comfort after a power outage or similar situation thanks to the system’s Auto Restart feature, and you’ll be able to rest easily no matter what due to the whisper-quiet operation of this system. This Easy Pro™ condenser has a noise level of 54 dB(A), meaning that comfort won’t startle you or disrupt a conversation, and its Low Ambient cooling feature means that you can cool your greenhouse or server room or similar environment when it’s just 5°F outside.
MRCOOL® won’t leave you out in the cold thanks to the 2-year compressor warranty and a 1-year parts warranty, you’ll receive once you register this unit. For ideal comfort at an ideal price, choose the MRCOOL® Easy Pro™ condenser. Experience comfort made easy, anytime and anywhere!
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- SEER2: 19.5
- EER2: 9
- HSPF2-4: 9.3
- HSPF2-5: 7
- Tonnage: 1
- Cooling Capacity: 12000 BTU
- Heating Capacity: 12000 BTU
- Voltage: 115V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 20A
- Min Circuit Ampacity: 19.5A
- Color: White
- Zone Capacity: 1
- Refrigerant Type: R-454B
- Refrigerant Volume: 21.52 oz
- Decibel Rating (High): 54 dBA
- Inverter: DC
- Min Ambient Cool: 5°F
- Line Set Included: Yes (16 ft)
- Max Line Set Length: 82 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 3/8 in
- Compressor Motor Type: Rotary
- Works with iOS: Yes
- Works with Android: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 10.63 in D × 19.49 in H × 28.35 in W
- Net Weight: 54.89 lbs
- Gross Dimensions: 10.63 in D × 21.26 in H × 32.87 in W
- Gross Weight: 67.24 lbs
─────────────────────────────────────────────────────────────
Compatibility
DIY 12k Easy Pro 5th Gen Air Handler - 115v
5th Gen R-454B DIY Line Set 1/4" - 3/8"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
MRCOOL Condenser Wall Mounting Kit - 9k to 18k BTU
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

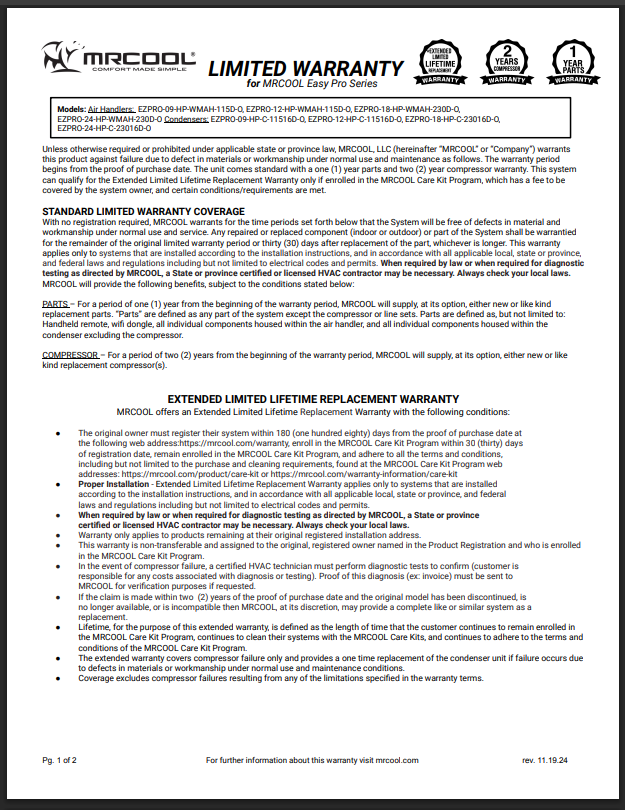

Warranty
