EZPRO-18-HP-C-23016D-O
Description

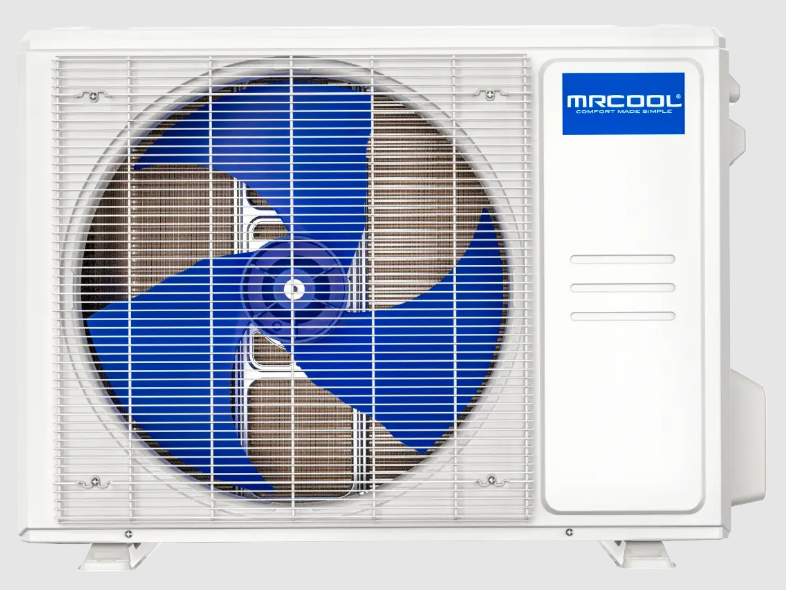

Treat yourself to perfect comfort at a price point that’ll make you happy with the MRCOOL® Easy Pro™ Series 18k BTU Mini Split Heat Pump Condenser
If you have a space that’s up to 800 square feet that you feel needs efficient heating and cooling, this is the unit for you. You’ll save money on top of its reasonable price point, because this unit has a do-it-yourself installation process, so you won’t need to hire anyone to install this unit for you.
The Easy Pro™ condenser comes with a 16 ft pre charged Fast Connection® line set that you can easily link to the system to install without the services of an HVAC professional. This innovative design will save you a lot of time and money up front, and the SEER2 of 20 and HSPF2 4 rating of 8.5 will save your wallet in the long run.
You’ll be able to enjoy comfort exactly the way you want with the Easy Pro™ condenser and its variety of features that improve user control, overall convenience, and general operation. The Wi Fi connectivity of the unit allows you to operate your system with the touch of a button if you have a smart phone.
The Auto Restart feature ensures you’ll be able to get right back to the comfort you deserve after a power outage or similar event, and when the system starts back up, you can be sure it won’t make a racket as it will only reach a volume of 55 dB(A). If you require year round cooling for a server room, greenhouse, or other similar space, you’re in luck as this unit features Low Ambient Cooling down to 5°F.
Enjoy worry free heating and cooling all year long thanks to the unit’s warranties: a 2 year compressor warranty and a 1 year parts warranty. The MRCOOL® Easy Pro™ condenser is the right choice for those who want comfort but don’t want to break the bank. Experience comfort made easy, anytime and anywhere..
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- SEER2: 20
- EER2: 9.8
- HSPF2-4: 8.5
- HSPF2-5: 6.6
- Tonnage: 1.5
- Cooling Capacity: 17000 BTU
- Heating Capacity: 18000 BTU
- Voltage: 208–230V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 20A
- Min Circuit Ampacity: 15A
- Color: White
- Zone Capacity: 1
- Refrigerant Type: R-454B
- Refrigerant Volume: 34.92 oz
- Decibel Rating (High): 55 dBA
- Inverter: DC
- Min Ambient Cool: 5°F
- Line Set Included: Yes (16 ft)
- Max Line Set Length: 98.4 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 1/2 in
- Compressor Motor Type: Rotary
- Works with iOS: Yes
- Works with Android: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 11.93 in D × 21.85 in H × 30.12 in W
- Net Weight: 62.61 lbs
- Gross Dimensions: 13.27 in D × 24.02 in H × 34.92 in W
- Gross Weight: 82.23 lbs
─────────────────────────────────────────────────────────────
Compatibility
DIY 18k Easy Pro 5th Gen Air Handler - 230v
5th Gen R-454B DIY Line Set 1/4" - 1/2"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
MRCOOL Condenser Wall Mounting Kit - 9k to 18k BTU
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

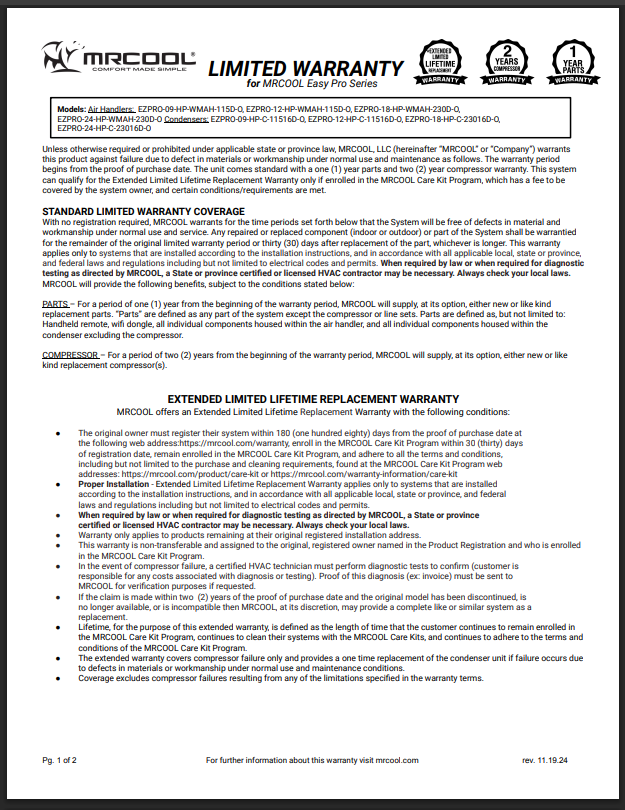

Warranty
The MRCOOL warranty offers comprehensive coverage for your unit.
─────────────────────────────────────────────────────────────
Quick Links
- Warranty Registration
- Warranty Information
- Image 1
- Image 2
- Service Manual
- Rebate Center
- Install Manual
- Remote Manual
- Manual de servicio en español
- Manuel de la télécommande en français
- Document de garantie en français
- Accessory Manual
- Manuel des accessoires en français
─────────────────────────────────────────────────────────────
