A-09-HP-WMAH-115D-O
NON DIY - Licensed HVAC Installation
Description

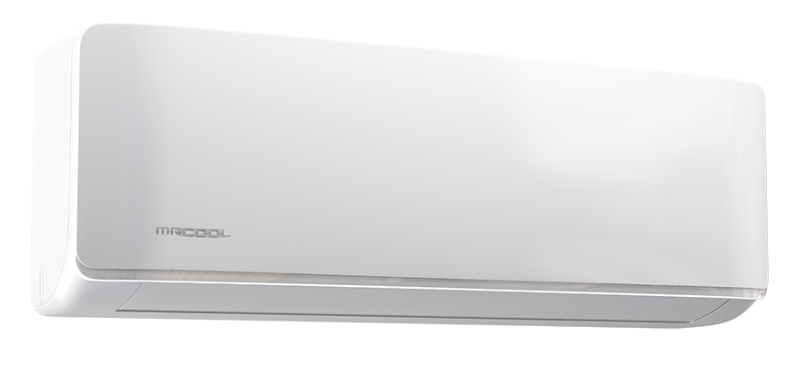

The 5th Generation MRCOOL® 9k BTU 115V Advantage Air Handler now comes equipped with R454B refrigerant, the latest eco-friendly solution offering enhanced energy efficiency, reduced greenhouse gas emissions, and a lower Global Warming Potential (GWP).
Designed for quiet operation, this Advantage mini-split unit delivers reliable heating and cooling for your home without the need for ductwork, ensuring an efficient and cost-effective solution for any space. Ideal for homeowners seeking an affordable yet powerful climate control system, the sleek Advantage air handler will give you the comfort you need all year long.
With built-in Wi-Fi, you can conveniently control the unit via remote access, allowing it to automatically adjust the temperature overnight for optimal comfort and energy savings.
Register your unit online and enjoy peace of mind with MRCOOL®’s robust warranty: 1 year parts warranty, 2 year compressor warranty, and 1 year remote control warranty. For further peace of mind, enroll in the MRCOOL® Care Program. Say goodbye to comfort concerns with the MRCOOL® Advantage Air Handler.
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- Tonnage: 0.75
- Voltage: 115V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 15A
- Min Circuit Ampacity: 3A
- Mount Type: Wall
- Color: White
- Decibel Rating: 33.5 dBA
- Decibel Rating (Low): 18 dBA
- Decibel Rating (High): 43 dBA
- Number of Speeds: 5
- Max Line Set Length: 82 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 3/8 in
- Filter Type: Reusable
- Overload Protection: Yes
- App Compatibility: Yes
- Works with iOS: Yes
- Works with Android: Yes
- Remote Control Included: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Has Batteries: Yes
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Depth: 7.36 in
- Net Height: 11.42 in
- Net Width: 28.43 in
- Net Weight: 17.42 lbs
- Gross Depth: 10.63 in
- Gross Height: 14.76 in
- Gross Width: 31.1 in
- Gross Weight: 22.93 lbs
─────────────────────────────────────────────────────────────
Compatibility
Advantage 9k 5th Gen Condenser - 115v
5th Gen Mini Split Line Sets 1/4 - 3/8
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

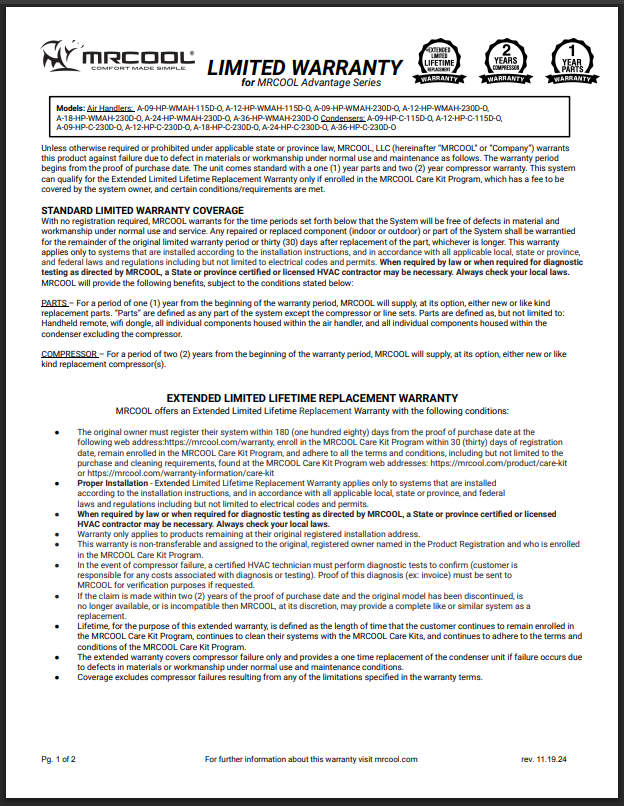

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.
─────────────────────────────────────────────────────────────
