A-09-HP-C-230D-O
NON DIY - Licensed HVAC Installation
Description

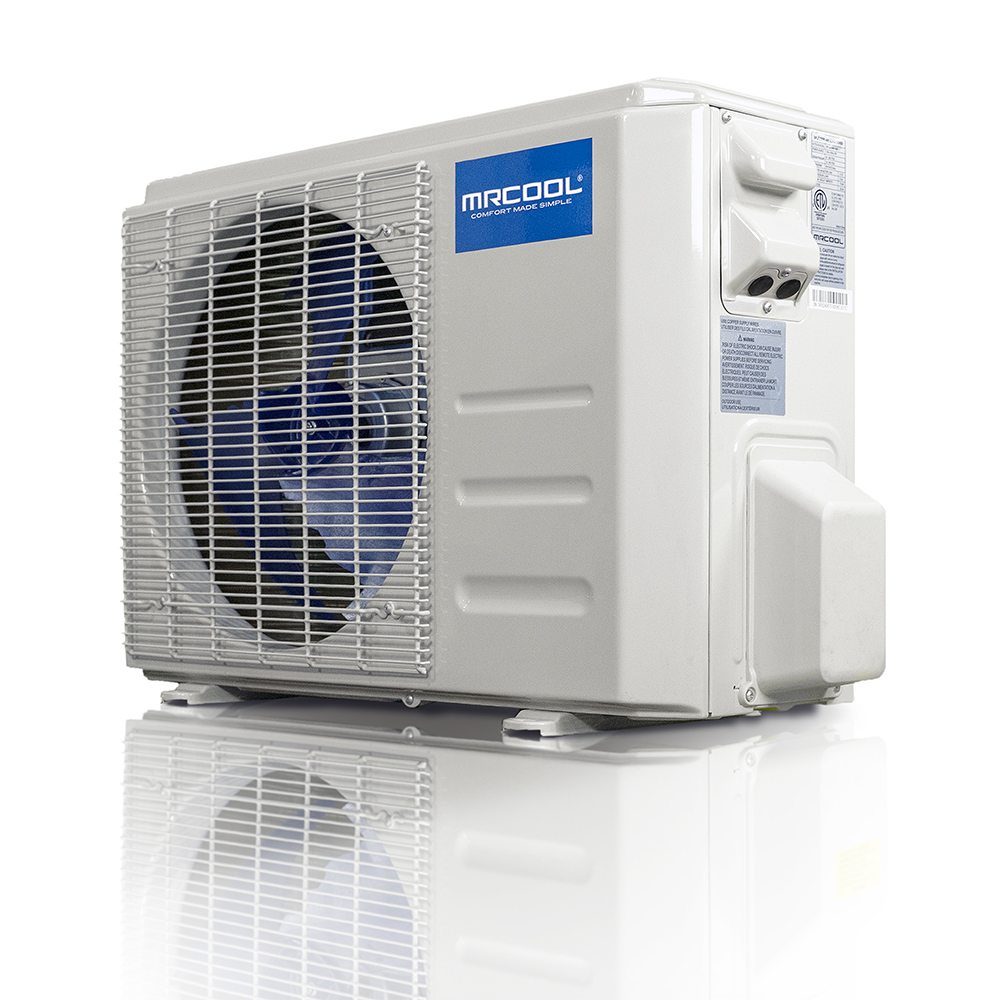

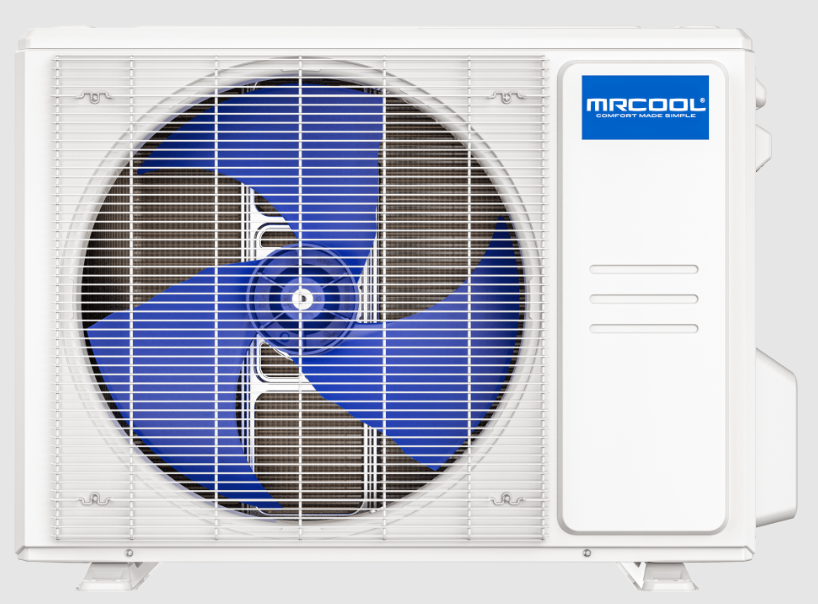

We’re excited to announce the 5th Generation 9k BTU 230V Advantage Condenser, a sustainable and economical system designed to deliver the comfort you need and deserve. This system achieves up to a 21.2 SEER2 rating and an HSPF2-4 of 9.1, thanks to its innovative design. Installed by an HVAC professional, it features R-454B refrigerant, a much more environmentally friendly choice compared to its predecessor, R-410A. With a Global Warming Potential (GWP) that is nearly 80% lower than R-410A, R-454B helps reduce your carbon footprint while keeping the unit efficient and effective throughout its lifespan. Perfect for spaces up to 400 sq. ft., the Advantage 9k is quiet, convenient, and packed with features that create an ideal user experience. One standout feature is the Wi-Fi module, allowing you to control the temperature through your phone, Amazon Alexa, or Google Assistant—no need to lift a finger to enjoy perfect comfort! The 5th Generation 9k BTU Advantage Condenser truly lives up to its name when it comes to providing efficient, reliable interior comfort.
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- Gold Fin® Condenser: Corrosion-resistant, perfect for coastal environments
- Timer Mode: Schedule your unit to operate at convenient times
- Refrigerant Leakage Detection: Ensures safe and efficient operation
- Follow Me® Function: Tracks the air temperature around you for optimal comfort
- Smart HVAC Controller® Module: Supports Google Assistant & Amazon Alexa out of the box
- R-454B Refrigerant: Eco-friendly and energy-efficient
- AHRI Certified: Ensures performance meets industry standards
- NEEP ccASHP Listed: Certified for performance and efficiency
- CEE Tier 1 - North: Meets high efficiency standards for the northern region
─────────────────────────────────────────────────────────────
Compatibility
Advantage 9k 5th Gen Air Handler - 230v
Mini Split Line Sets 1/4"-3/8"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
MRCOOL Condenser Wall Mounting Kit - 9k to 18k
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

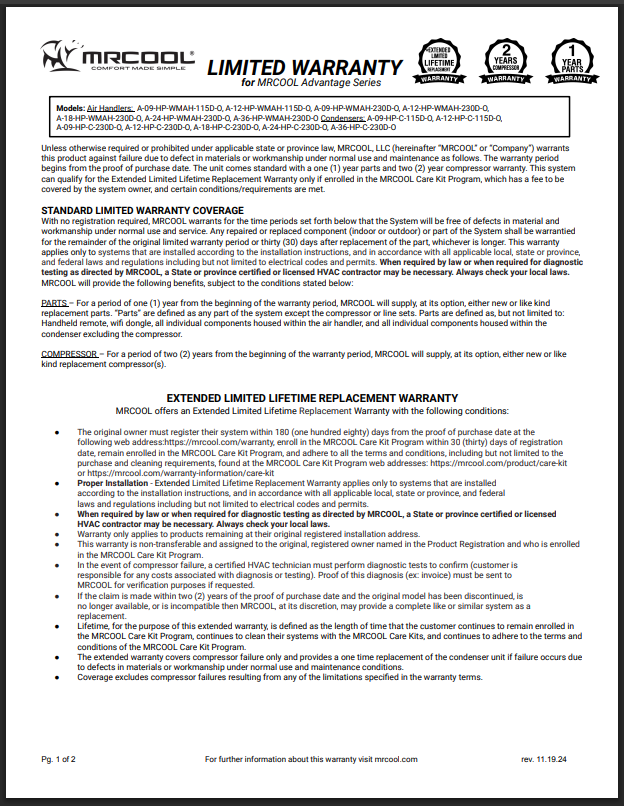

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.
─────────────────────────────────────────────────────────────
Quick Links
- Warranty Registration
- Warranty Information
- Image 1
- Image 2
- Service Manual
- AHRI Certs
- Energy Guide
- Rebate Center
- Install Manual
- Manuel d'installation en français
- Remote Manual
- Manual de servicio en español
- Manuel de la télécommande en français
- Document de garantie en français
- Accessory Manual
- Manuel des accessoires en français
─────────────────────────────────────────────────────────────
