A-12-HP-C-115D-O
NON DIY - Licensed HVAC Installation
Description

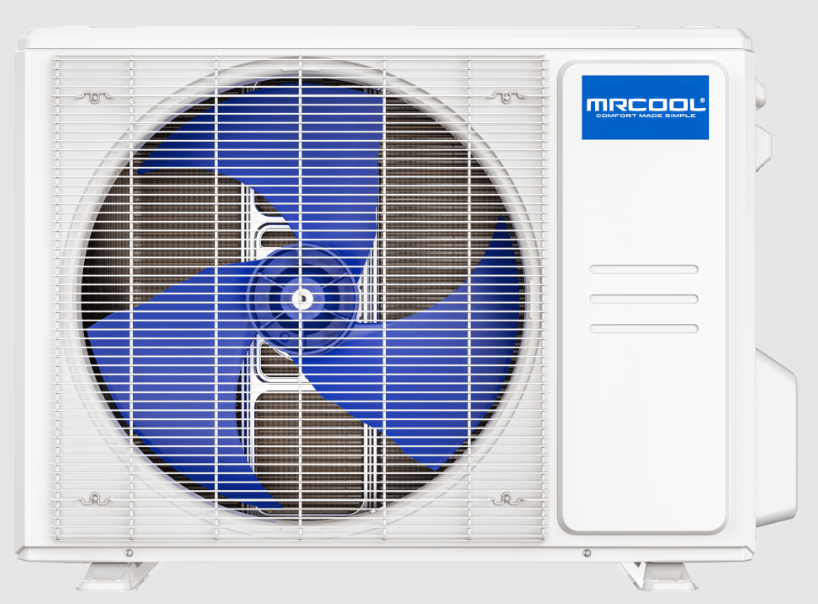

If you’re ready for a real advantage when it comes to comfort, we suggest getting the 5th Generation 12k BTU 115V Advantage condenser. You must have an HVAC professional install this system for you, but the simple installation of a ductless system ensures a fast and inexpensive process.
This system, which attains up to a 21.2 SEER2 rating as well as an HSPF2 4 rating of 8.7, makes the simple yet effective switch from R410A to R454B refrigerant. This significantly increases the overall performance and sustainability of the system, because R454B has a GWP (global warming potential) that is around 80 percent less than the previous refrigerant.
The increased efficiency of this system ensures that you won’t be paying a higher cost for better comfort as you’re decreasing your carbon footprint. Quiet, cost effective, and dependable, if you need comfort for your space that’s up to or around 550 square feet, the 12k Advantage will do the trick.
The Wi Fi module is a handy feature that makes temperature control a breeze, as it allows you to operate your system through your phone and Google Assistant or Amazon Alexa. You don’t even have to touch a button to control your comfort.
Alongside these features, the Advantage is covered by a 1 year parts warranty, 2 year compressor warranty, once you register your system. You can be sure that we’ve got your back when it comes to the comfort of your home. Take a break and enjoy the perfect temperatures and amazing value of the 5th Generation 12k BTU Advantage.
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- SEER2: 21.2
- EER2: 10.1
- HSPF2-4: 8.7
- HSPF2-5: 6.7
- Tonnage: 1
- Cooling Capacity: 12000 BTU
- Heating Capacity: 12000 BTU
- Voltage: 115V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 20A
- Min Circuit Ampacity: 19A
- Zone Capacity: 1
- Refrigerant Type: R-454B
- Refrigerant Volume: 24.34 oz
- Decibel Rating: 54 dBA
- Inverter: DC
- Max Line Set Length: 82 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 3/8 in
- Compressor Motor Type: Rotary
- Overload Protection: Yes
- App Compatibility: Yes
- Works with iOS: Yes
- Works with Android: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- Energy Star Certified: No
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Has Batteries: Yes
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 11.93 in D × 21.85 in H × 30.12 in W
- Net Weight: 61.29 lbs
- Gross Dimensions: 13.27 in D × 24.02 in H × 34.92 in W
- Gross Weight: 67.02 lbs
─────────────────────────────────────────────────────────────
Compatibility
Advantage 12k 5th Gen Air Handler - 115v
Mini Split Line Sets 1/4"-3/8"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
MRCOOL Condenser Wall Mounting Kit - 9k to 18k
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

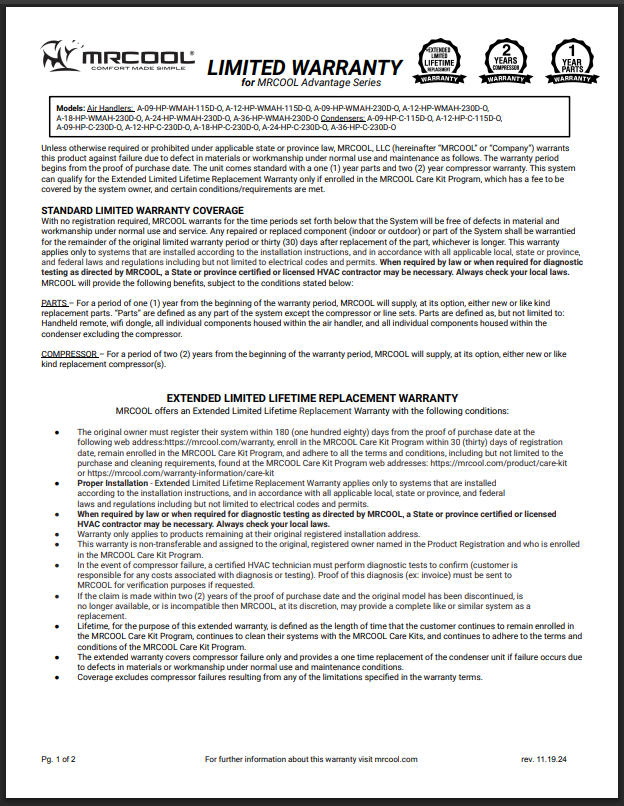

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.
─────────────────────────────────────────────────────────────
