A-09-HP-C-115D-O
NON DIY - Licensed HVAC Installation
Description

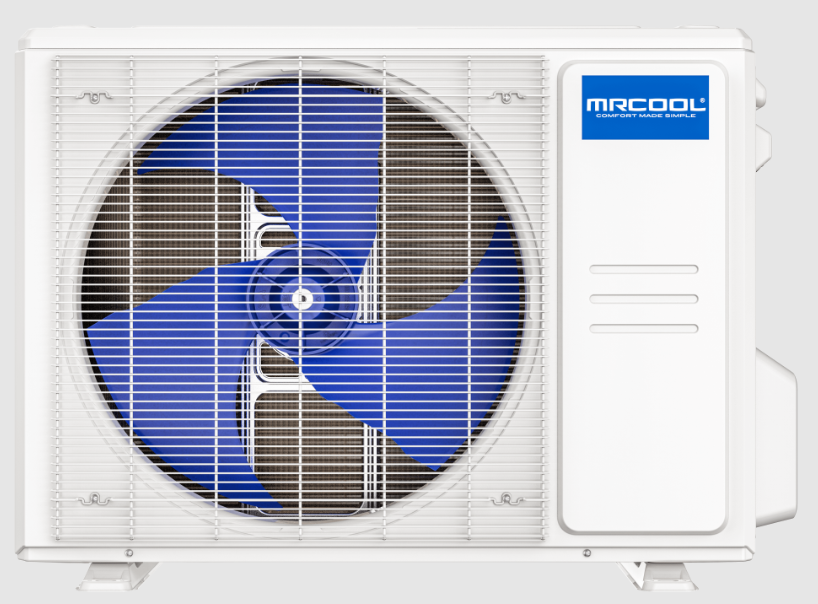

The highly efficient 5th Generation 9k BTU 115V Advantage condenser is a powerful eco friendly mini split unit that allows you to directly control the temperature of the space it’s installed in. This system must be installed by an HVAC professional, but since it is a ductless system, the process is much less time consuming and expensive than a central system.
With the capacity to achieve up to a 21.5 SEER2 rating and an HSPF2 4 of 9.0, this system will decrease energy usage while increasing how much money you save. This new generation uses R454B refrigerant instead of R410A, making it a much more sustainable and environmentally friendly choice, as R454B has a GWP (global warming potential) that is nearly 80 percent lower than the previous refrigerant.
Able to cover spaces up to 400 sq.ft., the Advantage is perfect for those in need of a quiet, convenient, and proficient system that gives you all the features you need. One of those features is the Wi Fi control module, which simplifies system setup and gives you access to operate your system through your phone and Amazon Alexa or Google Assistant.
On top of these features, the Advantage has a 1 year parts warranty, 2 year compressor warranty, meaning you can rest easy in perfect comfort knowing we’ve got your back. The 5th Generation 9k BTU Advantage condenser is clearly the right choice for anyone in need of efficient and practical comfort.
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- SEER2: 21.5
- EER2: 12.5
- HSPF2-4: 9
- HSPF2-5: 7
- Tonnage: 0.75
- Cooling Capacity: 9000 BTU
- Heating Capacity: 10000 BTU
- Voltage: 115V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 20A
- Min Circuit Ampacity: 18A
- Zone Capacity: 1
- Refrigerant Type: R-454B
- Refrigerant Volume: 21.52 oz
- Decibel Rating: 52.5 dBA
- Inverter: DC
- Max Line Set Length: 82 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 3/8 in
- Compressor Motor Type: Rotary
- Overload Protection: Yes
- App Compatibility: Yes
- Works with iOS: Yes
- Works with Android: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- Energy Star Certified: Yes
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Has Batteries: Yes
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 11.93 in D × 21.85 in H × 30.12 in W
- Net Weight: 56.66 lbs
- Gross Dimensions: 13.27 in D × 24.02 in H × 34.92 in W
- Gross Weight: 62.17 lbs
─────────────────────────────────────────────────────────────
Compatibility
Mini Split Line Sets 1/4"-3/8"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
MRCOOL Condenser Wall Mounting Kit - 9k to 18k BTU
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

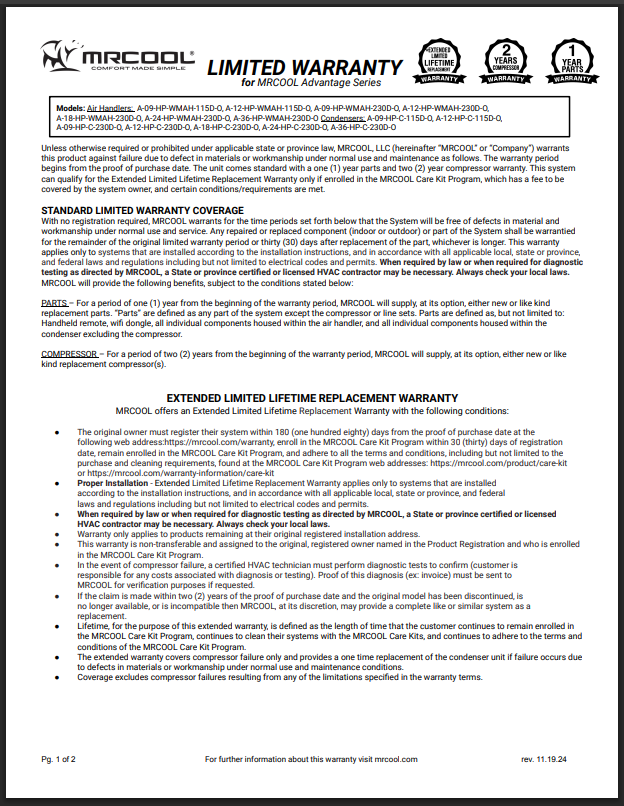

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.
─────────────────────────────────────────────────────────────
Quick Links
- Warranty Registration
- Warranty Information
- Image 1
- Image 2
- Service Manual
- AHRI Certs
- Energy Guide
- Rebate Center
- Install Manual
- Manuel d'installation en français
- Remote Manual
- Manual de servicio en español
- Manuel de la télécommande en français
- Document de garantie en français
- Accessory Manual
- Manuel des accessoires en français
─────────────────────────────────────────────────────────────
