A-18-HP-C-230D-O
NON DIY - Licensed HVAC Installation
Description

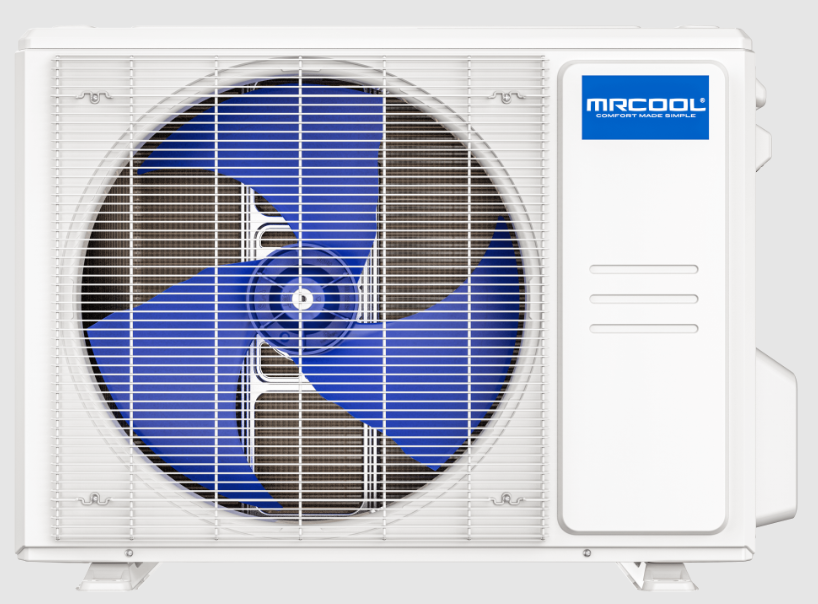

The 5th Generation 18k BTU 230V Advantage condenser is the right choice for anyone who needs fast, efficient, and effective home comfort.
While this ductless mini-split unit must be installed by an HVAC professional, it’ll be a much cheaper and faster process than a typical installation of a central system, as it is a ductless mini-split unit.
It’ll also be worth it because this system is incredibly convenient and user friendly, thanks to features like its Wi Fi Module. This feature enables integration with your phone and allows you to use Amazon Alexa and Google Assistant, which lets you literally speak your comfort into existence.
When it comes to its operation, this system uses significantly less energy than its previous generation because it uses R454B refrigerant instead of R410A. R454B has around 80 percent less of a GWP (global warming potential), which allows the system to be much more eco friendly, reducing your carbon footprint while you enjoy perfect comfort.
Use of this refrigerant also enhances the efficiency of this system, so this condenser can achieve up to a 19.2 SEER2 rating and a 9.3 HSPF2 4 rating. This system is perfect for a space that is up to and around 800 square feet.
We’ve got your back when it comes to this unit, too. Once you register, you are entitled to a 1 year parts warranty, 2 year compressor warranty on this unit. Let the 5th Generation 18k BTU Advantage condenser give you the comfort you deserve at the price point you want.
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- SEER2: 19.2
- EER2: 10.8
- HSPF2-4: 9.6
- HSPF2-5: 7.5
- Tonnage: 1.5
- Cooling Capacity: 18000 BTU
- Heating Capacity: 18800 BTU
- Voltage: 208–230V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 20A
- Min Circuit Ampacity: 15A
- Zone Capacity: 1
- Refrigerant Type: R-454B
- Refrigerant Volume: 40.57 oz
- Decibel Rating: 56 dBA
- Inverter: DC
- Max Line Set Length: 98.4 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 1/2 in
- Compressor Motor Type: Rotary
- Overload Protection: Yes
- App Compatibility: Yes
- Works with iOS: Yes
- Works with Android: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- Energy Star Certified: No
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Has Batteries: Yes
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 12.99 in D × 21.81 in H × 31.69 in W
- Net Weight: 72.31 lbs
- Gross Dimensions: 14.57 in D × 24.21 in H × 36.02 in W
- Gross Weight: 78.48 lbs
─────────────────────────────────────────────────────────────
Compatibility
Advantage 18k 4th Gen Air Handler - 230v
Mini Split Line Sets 1/4"-1/2"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
MRCOOL Condenser Wall Mounting Kit - 9k to 18k
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

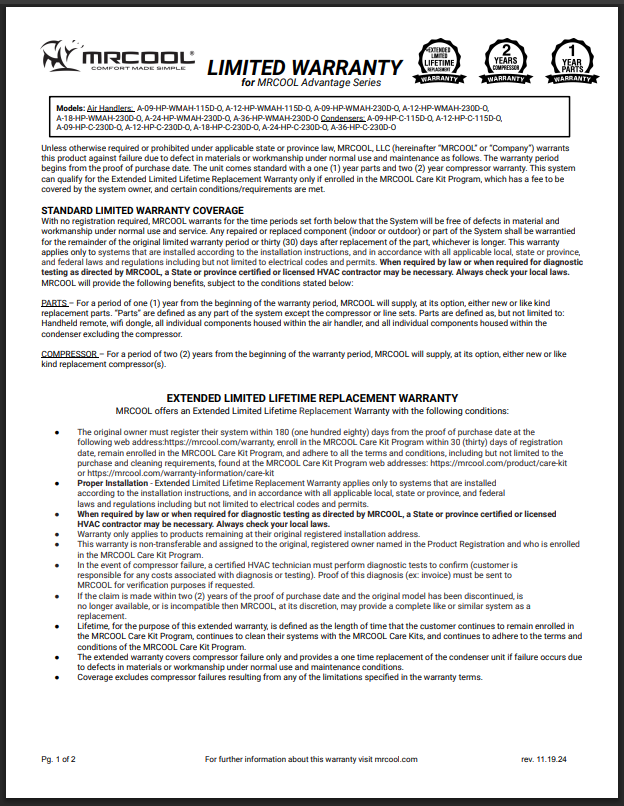

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.
─────────────────────────────────────────────────────────────
