A-12-HP-C-230D-O
NON DIY - Licensed HVAC Installation
Description

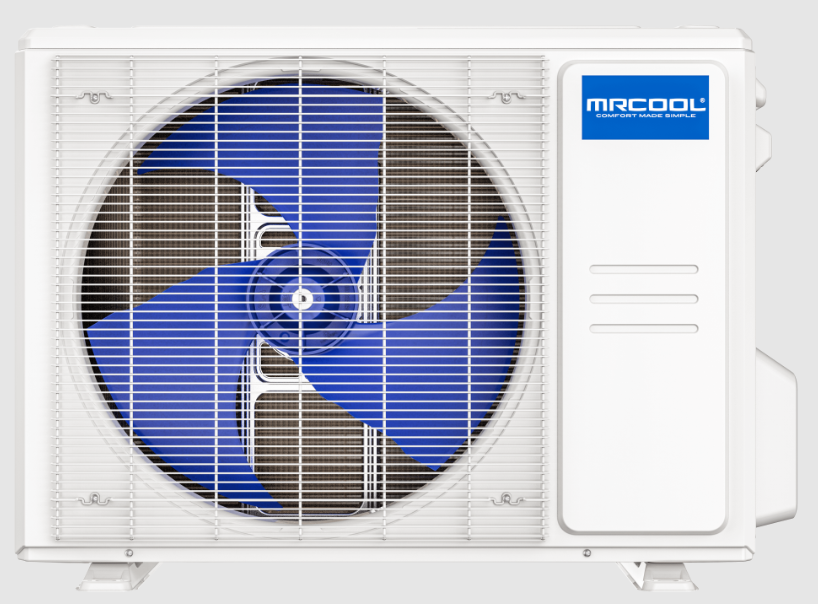

Pure comfort at a cost that can’t be beat, the 5th Generation 12k BTU 230V Advantage condenser is the right choice if you want practical, effective heating and cooling.
This highly efficient system is able to achieve up to a 21.3 SEER2 rating, as well as a rating of HSPF2 4 of 9.1, making it a great choice for anyone who wants to experience ideal comfort without paying a high price for it.
Once the Advantage condenser is installed by an HVAC professional, which is a relatively simple process that won’t take long or cost much thanks to the system being a ductless mini-split, you’ll be able to enjoy comfort that’s quiet, convenient, and cost effective.
This system, which can cover spaces around and up to 500 sq. ft., operates more effectively than its previous generation because it uses R454B refrigerant instead of R410A, making it better for the environment and your wallet.
To elaborate, R454B has a GWP (global warming potential), that is around 80 percent less than the previous refrigerant we used, meaning your carbon footprint will shrink right alongside your electrical bills.
This practical system enhances the user experience greatly by including a Wi Fi module. With this, you can control the temperature of your space using your phone and Amazon Alexa or Google Assistant.
The warranties, which are a 1 year parts warranty, 2 year compressor warranty, will protect your peace of mind as you enjoy the perfect temperatures for you. The right HVAC unit, like this 5th Generation 12k BTU condenser, will definitely put you at an Advantage.
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- SEER2: 21.3
- EER2: 10.8
- HSPF2-4: 9.1
- HSPF2-5: 7
- Tonnage: 1
- Cooling Capacity: 12000 BTU
- Heating Capacity: 12000 BTU
- Voltage: 208–230V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 15A
- Min Circuit Ampacity: 13A
- Zone Capacity: 1
- Refrigerant Type: R-454B
- Refrigerant Volume: 24.69 oz
- Decibel Rating: 54 dBA
- Inverter: DC
- Max Line Set Length: 82 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 3/8 in
- Compressor Motor Type: Rotary
- Overload Protection: Yes
- App Compatibility: Yes
- Works with iOS: Yes
- Works with Android: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- Energy Star Certified: No
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Has Batteries: Yes
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 11.93 in D × 21.85 in H × 30.12 in W
- Net Weight: 59.08 lbs
- Gross Dimensions: 13.27 in D × 24.02 in H × 34.92 in W
- Gross Weight: 64.37 lbs
─────────────────────────────────────────────────────────────
Compatibility
Advantage 12k 4th Gen Air Handler - 230v
Mini Split Line Sets 1/4"-3/8"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
MRCOOL Condenser Wall Mounting Kit - 9k to 18k
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

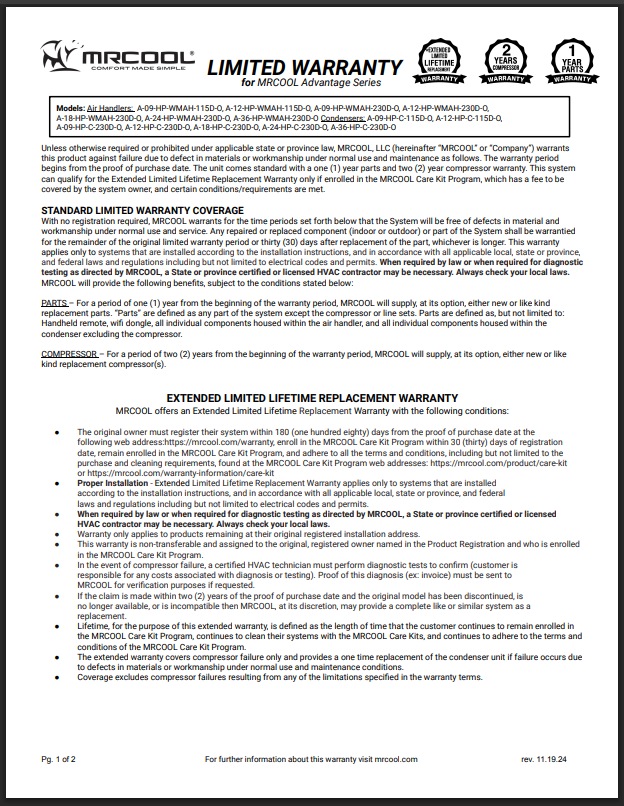

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.
─────────────────────────────────────────────────────────────
