Advantage 36k 5th Gen Condenser - 230v

Isabelle A
Updated

A-36-HP-C-230D-O

NON DIY - Licensed HVAC Installation



Description

Give yourself an advantage literally with our 5th Generation 36k BTU 230V Advantage condenser.

This Advantage unit must be installed by an HVAC professional, which will be a relatively fast and inexpensive process, as ductless mini splits typically have an easier installation than most HVAC units.

This 36k BTU unit is perfect if you need to cover a space that is up to and around 1,550 sq. ft. space in efficient, reliable comfort. Covering a large space won’t break the bank, either, because this unit achieves a SEER2 rating of 18 as well as an HSPF2 4 rating of 8.5, meaning you can bring your space to whatever temperature you want without watching your bills skyrocket.

A new refrigerant, R454B, gives this system an edge over its previous generation, which used R410A. This means that the 5th Generation Advantage is a much more environmentally sound and energy efficient option because R454B has a GWP (global warming potential) that is 80 percent lower than the refrigerant used in the previous generation, which makes this system a great choice for you and everyone on the planet.

It’s an incredibly convenient choice, too, because it includes a Wi Fi module, which enables control of your system through your phone and Amazon Alexa or Google Home, giving you the ability to control your space’s temperature with just your voice.

When this system is installed and registered, you can rely on its 1 year parts warranty, 2 year compressor warranty, so you can rest easy with peace of mind. Choose a 5th Generation 36k BTU Advantage for the best home comfort that you’ve always deserved.



Find the Brochure HERE.

─────────────────────────────────────────────────────────────

Key Specs (Performance Specs Click Here)

  • SEER2: 18
  • EER2: 9
  • HSPF2-4: 8.5
  • HSPF2-5: 6.8
  • Tonnage: 3
  • Cooling Capacity: 36000 BTU
  • Heating Capacity: 36000 BTU
  • Voltage: 208–230V
  • Phase: 1
  • Cycle: 60Hz
  • Max Fuse Breaker: 35A
  • Min Circuit Ampacity: 33A
  • Zone Capacity: 1
  • Refrigerant Type: R-454B
  • Refrigerant Volume: 112.88 oz
  • Decibel Rating: 60.5 dBA
  • Inverter: DC
  • Max Line Set Length: 213.2 ft
  • Liquid Line Size: 3/8 in
  • Suction Line Size: 5/8 in
  • Compressor Motor Type: Rotary
  • Overload Protection: Yes
  • App Compatibility: Yes
  • Works with iOS: Yes
  • Works with Android: Yes
  • UL Listed: Yes
  • CSA Listed: Yes
  • ETL Listed: Yes
  • Energy Star Certified: No
  • AHRI Certified: Yes
  • Base Parts Warranty: 1 Year
  • Base Compressor Warranty: 2 Years
  • Has Batteries: Yes
  • Contains Chemicals: Yes
  • Contains Compressed Gas: Yes
  • Proposition 65 Warning: Yes
  • Net Dimensions: 16.14 in D × 31.89 in H × 37.24 in W
  • Net Weight: 150.35 lbs
  • Gross Dimensions: 19.68 in D × 34.84 in H × 42.91 in W
  • Gross Weight: 160.27 lbs

─────────────────────────────────────────────────────────────

Compatibility

Advantage 36k 4th Gen Air Handler - 230v

Mini Split Line Sets 3/8"-5/8"

Line Guards

MRCOOL Mini-Stats

MMCK01 Cool Care Program Kit

MMCFOA Cool Care Program Kit - Foaming Cleanser Only

MB440A - MRCOOL Condenser Wall Mounting Kit - 24k & 36k



Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.

─────────────────────────────────────────────────────────────

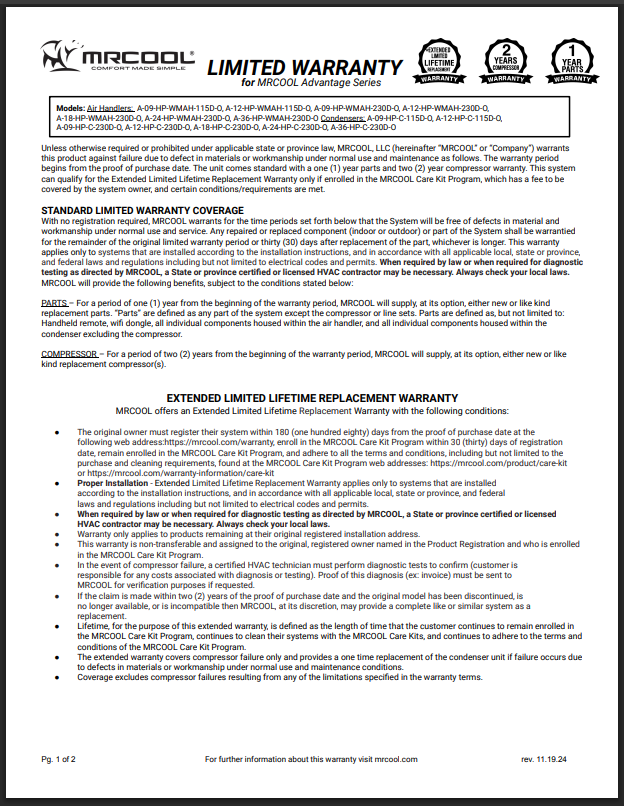

Warranty

The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.

─────────────────────────────────────────────────────────────
