A-12-HP-WMAH-115D-O
NON DIY - Licensed HVAC Installation
Description

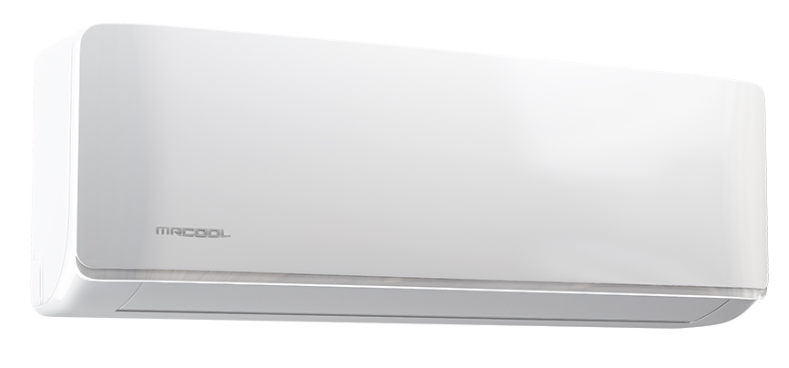

The 5th Generation MRCOOL® 12k 115V Advantage Air Handler now features R454B refrigerant, an eco-friendly choice that enhances energy efficiency, reduces greenhouse gas emissions, and lowers Global Warming Potential (GWP).
Engineered for quiet operation, this mini-split unit provides reliable heating and cooling for your home without requiring ductwork, making it a cost-effective, efficient choice for any room. Designed with homeowners in mind, the sleek Advantage air handler combines power and affordability, allowing it to deliver consistent, balanced comfort.
The built-in Wi-Fi feature allows you to control settings remotely, ensuring easy temperature adjustments from anywhere. You can also program it to automatically adjust overnight for optimized comfort and energy savings.
Backed by MRCOOL’s strong warranty, the Advantage Series offers 1 year parts warranty, 2 year compressor warranty, and 1 year remote control warranty with registration, ensuring long-lasting peace of mind. You can even enroll in the MRCOOL® Care Program.
Find the Brochure HERE.
─────────────────────────────────────────────────────────────
Key Specs
- Tonnage: 1
- Voltage: 115V
- Phase: 1
- Cycle: 60Hz
- Max Fuse Breaker: 15A
- Min Circuit Ampacity: 3A
- Color: White
- Decibel Rating: 32.5 dBA
- Decibel Rating (Low): 17.5 dBA
- Decibel Rating (High): 45 dBA
- Number of Speeds: 5
- Max Line Set Length: 82 ft
- Liquid Line Size: 1/4 in
- Suction Line Size: 3/8 in
- Filter Type: Reusable
- Overload Protection: Yes
- App Compatibility: Yes
- Works with iOS: Yes
- Works with Android: Yes
- Remote Control Included: Yes
- UL Listed: Yes
- CSA Listed: Yes
- ETL Listed: Yes
- AHRI Certified: Yes
- Base Parts Warranty: 1 Year
- Base Compressor Warranty: 2 Years
- Has Batteries: Yes
- Contains Chemicals: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
- Net Dimensions: 7.44 in D × 11.69 in H × 31.57 in W
- Net Weight: 19.4 lbs
- Gross Dimensions: 11.22 in D × 14.96 in H × 34.45 in W
- Gross Weight: 25.13 lbs
─────────────────────────────────────────────────────────────
Compatibility
Advantage 12k 5th Gen Condenser - 115v
Mini Split Line Sets 1/4"-3/8"
MMCFOA Cool Care Program Kit - Foaming Cleanser Only
Disclaimer:
The compatibility information provided in this article is specific to units within the same series. While additional compatibility with other series and units may exist, it is not detailed here. For further assistance or confirmation of compatibility with other systems, please contact MRCOOL support.
─────────────────────────────────────────────────────────────

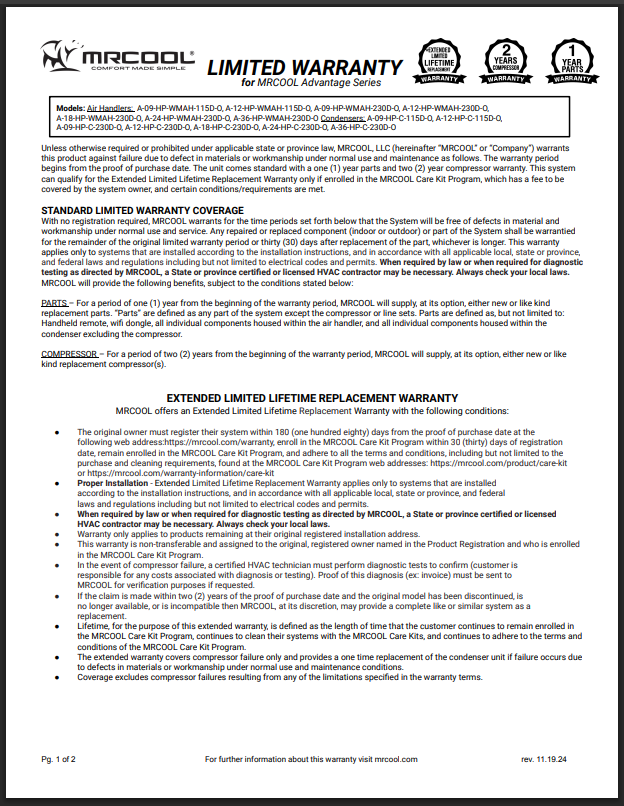

Warranty
The MRCOOL warranty provides comprehensive coverage for your unit when installed by a licensed professional.
─────────────────────────────────────────────────────────────
Quick Links
- Warranty Registration
- Warranty Information
- Image 1
- Image 2
- Image 3
- Service Manual
- Rebate Center
- Install Manual
- Manuel d'installation en français
- Remote Manual
- Manual de servicio en español
- Manuel de la télécommande en français
- Document de garantie en français
- Accessory Manual
- Manuel des accessoires en français
─────────────────────────────────────────────────────────────
📞 (270) 366-0457
📧 support@mrcool.com
📝 Submit a support ticket
Comments
1 comment
Says 5th gen advantage in compatible with 4th gen condenser. I thought R454B was incompatible with R410A and it was dangerous to mix the two.
